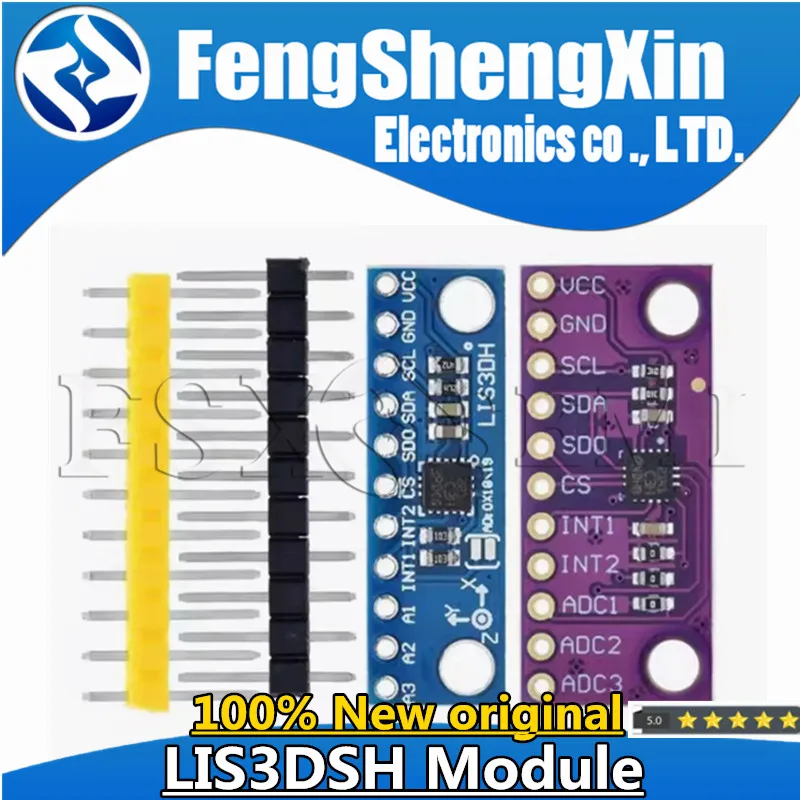

LIS3DSH 3-axis Accelerometer Module High-Resolution 171V To 36V 2g 4g 6g 8g 16g Dynamically Selectable Full Scale 3.125 Hz To 1.6 KHz 16-bit Data Output I2C SPI Output Interface

Description The LIS3DSH is an ultra-low-power highperformance three-axis linear accelerometer belonging to the “nano” family with an embedded state machine that can be programmed to implement autonomous applications. The LIS3DSH has dynamically selectable full scales of ±2g ±4g ±6g ±8g ±16g and is capable of measuring accelerations with output data rates from 3.125 Hz to 1.6 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. Features Wide supply voltage, 1.71 V to 3.6 V Independent IOs supply (1.8 V) and supply voltage compatible Ultra-low power consumption ±2g ±4g ±6g ±8g ±16g dynamically selectable full scale I2C/SPI digital output interface 16-bit data output Programmable embedded state machines Embedded temperature sensor Embedded self-test Embedded FIFO 10000 g high shock survivability Applications Motion-controlled user interface Gaming and virtual reality Pedometers Intelligent power saving for handheld devices Display orientation Click/double-click recognition Impact recognition and logging Vibration monitoring and compensation Package Included: 1pcs NOYITO LIS3DSH Three-axis Accelerometer Module The LIS3DSH is an ultra-low-power highperformance three-axis linear accelerometer belonging to the “nano” family with an embedded state machine that can be programmed to implement autonomous applications. NOYITO LIS3DSH-master download https://1drv.ms/u/s!
