TOM - New Sbc Small Block Chevy Push Rod Guide Plates And 3/8 Rocker Arm Studs Kit 7/16 Push Rod Slot Size

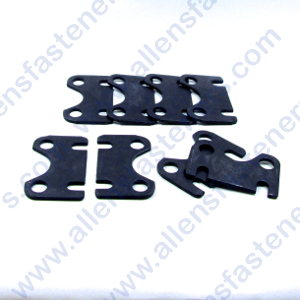

Kit Includes 8 Guide Plates And 16 Rocker Arm Studs. The Guide Plates Are The Flat Style For 5/16 Diameter Pushrods. The Rocker Arm Studs Are The Screw In Style With Shouldered Heads And Fit 3/8 Rocker Arms. This Kit compatible for Many Small Block Chevy 262, 265, 267, 283, 302, 305, 307, 327, 350 And 400 V8 Engines. 💖【Guide Plate Details】: Part Number: GP100S; Stud Hole Size: 7/16; Push Rod Slot Size: 5/16; Material: Heat Treated Steel 💖【Rocker Stud Specifications】: Part Number: RDS2920; Material: 190,000 Psi Alloy Steel; (A) 2.425 Overall Stud Length; (B) 1.725 Stud Height; (C) 0.700 Screw-In Thread Depth; (D) 0.875 Adjuster Thread Depth; (E) 3/8-24 Fine Thread; (F) 7/16-14 Coarse Thread 💖【Warranty】: Support one year warranty, we guarantees all products to be free from defects in materials and workmanship when properly installed and under normal usage to the original purchaser and for the original vehicle parts were installed on.
